CAS850A005
Product Description &Features
• Customized 850nm Vertical-Cavity Surface-Emitting Laser
• Very low wavelength-temperature sensitivity
• Chip on submount or heatsink is available upon request
• Other wavelengths, chip dimensions, and emitter patterns are available uponrequest
Typical Applications
• 3D sensing.
Electro-Optical Characteristics
Parameters | Symbol | Min | Typical | Max | Units | Test Condition |
Optical Output Power | POP | 0.4 | 0.6 | 1.0 | mW | CW 1.5mA, 25℃ |
Threshold Current | Ith | – | 0.8 | 1.0 | mA | CW 25℃ |
Operating Current | Iop | – | 1.5 | – | mA | CW 1.5mA, 25℃ |
Differential resistance | Rs | – | 250 | 400 | Ω | CW 1.5mA, 25℃ |
Operating Voltage | Vop | 1.7 | 2.1 | 2.5 | V | CW 1.5mA, 25℃ |
Slope Efficiency | ηs | 0.5 | 0.8 | 1.0 | W/A | CW 1.5mA, 25℃ |
Power Conversion Efficiency | PCE | 15 | 30 | – | % | CW 1.5mA, 25℃ |
Wavelength | λpeak | 840 | 850 | 860 | nm | CW 1.5mA, 25℃ |
SM optical output power | PSM | – | – | 1 | mW | CW 1.5mA, 25℃ |
Beam Full Divergence (1/e2) | ϕ | 13 | 16 | 21 | ° | CW 1.5mA, 25℃ |
Side Mode Suppression Ratio | SMSR | 20 | dB | CW 1.5mA, 25℃ | ||
Accuracy of polarization direction | pol | -15 | 0 | 15 | ° | CW 1.5mA, 25℃ |
* All tests are under CW condition with heatsink temperature 25℃, unless otherwise specified.

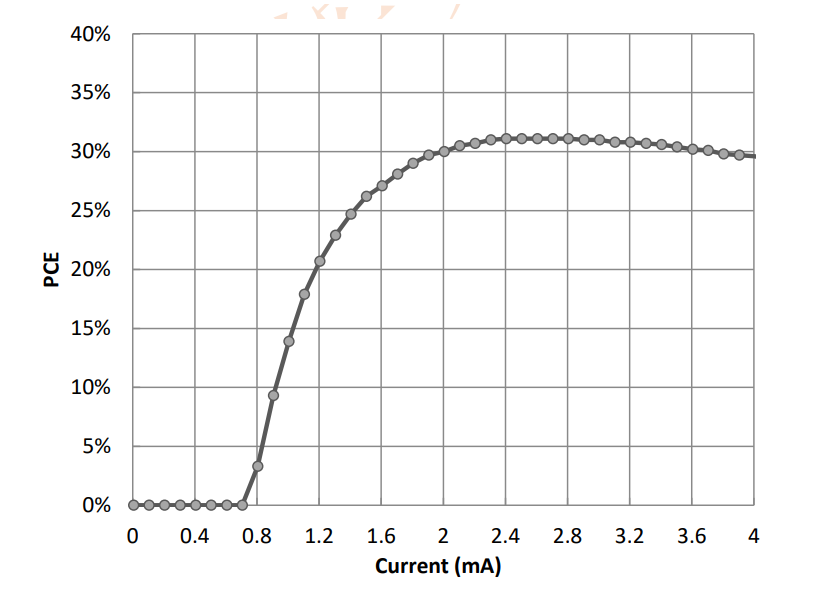

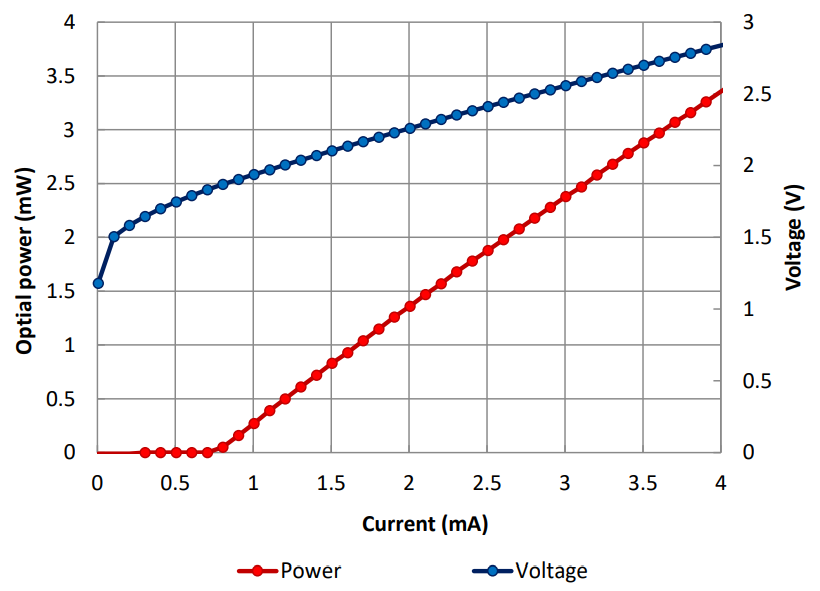

Typical Performance Curves at 25°C
Shipping Instruction
Parameter | Ratings | Units |
Chip Width | 173±15 | µm |
Chip Length | 173±15 | µm |
Chip Height | 100±10 | µm |
Anode Contact | Emission side, Au surface | |
Anode bonding pad | 80*80 | µm x µm |
Cathode Contact | Backside, Au surface |

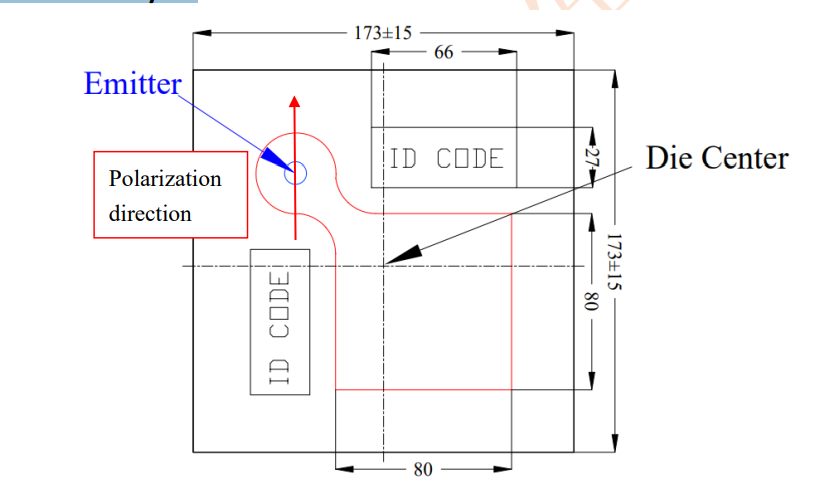

Chip dimension layout
Absolute Maximum Ratings
Parameter | Conditions | Units |
Operating Temperature | 0 to 85 | °C |
Storage Temperature | -40 to 105 | °C |
Stresses beyond the parameters listed under Absolute Maxim Ratings may cause permanent damage to the chips.
Shipping Instruction
The modules are shipped in tape & reeling packaging or Gel-boxes.
Note: No responsibility is assumed for the use of these products. The products canemit Class IV radiation and must be operated with extreme care. Avoid directly viewing the laser beam or exposure to specular reflections. Proper eyewear must be worn at all times when operating. VCSEL Chip in the modules are electrostatic-sensitive device and proper ESD protection is required forhandling.
